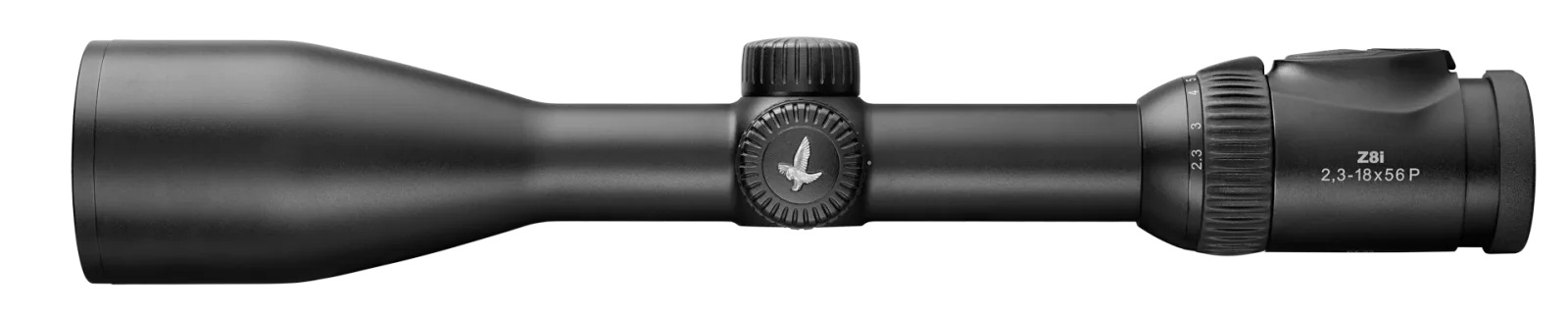

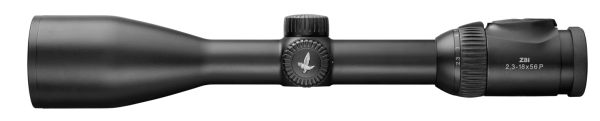

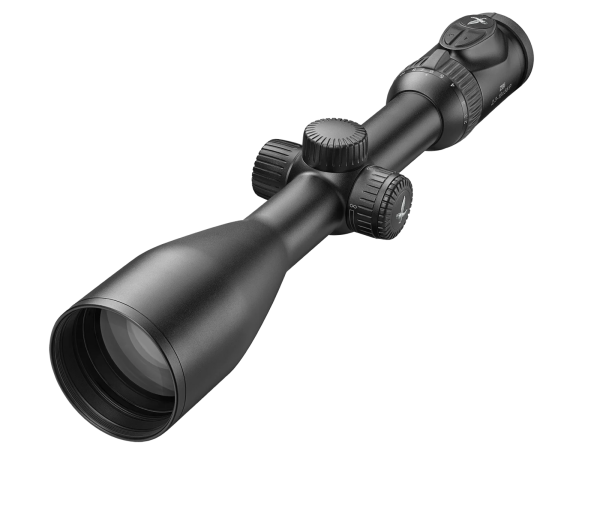

The illuminated Swarovski Z8i 2.3-18×56 P stands out for its high light transmission, especially when hide hunting at twilight. The magnification of up to 18x provides the details required for precise long-range shooting.
The magnification specifies how much closer an object appears to be. The higher the magnification, the closer the object appears and the smaller the field of view. Rifle scopes usually have variable magnification (zoom), e.g. 2-16x. This means it is possible to zoom continuously from 2x to 16x magnification.
To always be able to aim at the sighting point from different distances, the reticle is adjusted so that the impact point matches the aiming point. The aiming point is the point on the object you want to target. The reticle adjustment in the turrets on the rifle scope is operated using the click settings. Each click changes the impact point.
The adjustment range describes the range within which you can correct the impact point by adjusting the reticle without moving the device. The adjustment range is specified in relation to both the elevation and the windage adjustment.
Swarovski measures the adjustment range in meters per 100 meters (m/100m) or inches per 100 yards (in/100yd). Other manufacturers choose to specify this in MRAD (milliradians) or MOA (minutes of angle).
This describes the amount of visible light that can pass through an optical system and is expressed as a percentage. The objective lens diameter specifies how much light can enter the optics. This makes it a key factor in an instrument’s performance, for example, in twilight. The bigger the objective lens diameter, the more light the objective lens can capture. The darker the surroundings, the larger the objective lens diameter needs to be. Check the precise product name as the number after the ‘x’ specifies the objective lens diameter in millimeters. A device with a suffix of 2-16×50, for example, has an objective lens with a diameter of 50 mm.
WHAT COMES IN DELIVERY WITH THE SCOPE:
- Transparent scope covers
- Replacement battery in replacement battery holder
- Microfiber cloth
TECHNICAL SPECIFICATION:
Mount type: Rail mount
- 2.3-18x Magnification
- 18.4-56 mm Effective objective lens diameter
- 8.1-3.1 mm Exit pupil diameter
- 95 mm Exit pupil distance
- 18.6-2.3 m/100m Field of view
- 10.6-1.3 ° Field of view degrees
- 24 ° Field of view apparent
- -3 to +2 dpt Diopter adjustment
- 93 % Light transmission
- 6.5-31.8 Twilight factor acc. to ISO 14132-1
- 50-∞ m Parallax correction
- 0.36 / 10 Impact point correction per click (in / mm)
- 1.8/1.0 / 64.8/36.0 Max. elevation / windage adjustment range (m/100m / in/100yds)
- M 58×0.75 Objective filter thread
- Operating time: Twilight factor at medium brightness: 1,400; daylight factor at medium brightness: 180
- Length in mm.: 364 mm
- Weight: 725 g 740 g
- Central tube diameter: 30 mm
ENVIRONMENT & CONDITIONS:
- Functional temperature: -20 to +55 °C
- Storage temperature: -30 to +70 °C
- Submersion tightness: 13 ft / 4 m water depth (inert gas filling)
- Brightness levels: Twilight: 0 – 32 / Day: 33 – 64
