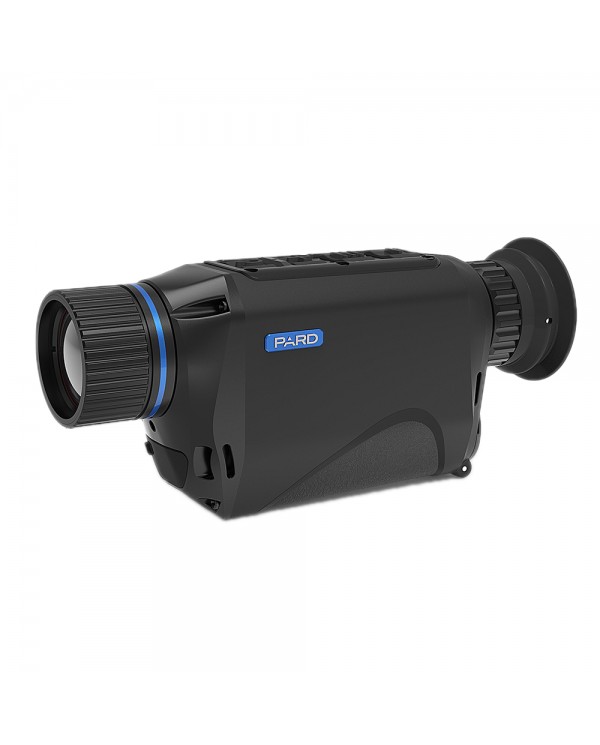

Pard TA62 Thermal Imaging Monocular
1676,68 € – 1809,71 € inc. VAT
Hand held thermal image monocular designed to fit into one hand and easily into a normal jacket pocket. Durable with stable picture quality with excellent detection levels and clearly visible targets.
Wi-fi image transmission
Performance parameters
| Model | Detector | NETD | Lens | Optical Magnification | Frame Rate | Field Angele | Overall Dimension | Detection Distance | Weight (excluding battery) | |
| TA32 | 12μm 384*288 | ≦25mk | 19/25/35mm | 2.7/3.5/4.5x | 50Hz | 13.8º/10.6º /7.5º |
145/153/159*68*44 | 1.2/1.6/2km | 288/300/328g | |
| TA62 | 12μm 640*480 | ≦25mk | 25mm/35mm | 2/2.8x | 30Hz | 17.5º/12.5º | 153/158*68*44 | 1.5/1.8km | 300/328g | |
| General Parameters | ||||||||||
| Digital zoom | 1/2/4/6/8x | Focusing range |
1m-∞ | Exit pupil distance |
15mm | Diopter adjustment |
±5D | Battery | 18650 | |
| Eyepiece resolution |
1024*768 OLED |
working temper |
– ∽ 30ºC +60ºC | Transmission mode |
WiFi/HDMI | Protective performance |
IP67 | Storage type | TF Card (max128G) |
|
| Frame rate | 30 fps | Battery life | 5H (Max) | Video format | AV | Casing material | AL6061 + Plastic | |||
| Voltage | 3.7V | Video resolution |
1440*1080 | Charging port type |
TYPE-C | Image mode | White Hot/RedHot/BlackHot /Edge/Sky/IronHot |
|||
| Lens Size | 25mm, 35mm |
|---|
1 review for Pard TA62 Thermal Imaging Monocular
| 5 star | 0% | |
| 4 star | 100% | |
| 3 star | 0% | |
| 2 star | 0% | |
| 1 star | 0% |
Only logged in customers who have purchased this product may leave a review.
Related products
130,00 € inc. VAT
This product has multiple variants. The options may be chosen on the product page
-14%
-15%
1699,00 € – 1799,00 € inc. VAT
This product has multiple variants. The options may be chosen on the product page
Out of stock
599,00 € – 699,00 € inc. VAT
This product has multiple variants. The options may be chosen on the product page
1399,00 € – 1499,00 € inc. VAT
This product has multiple variants. The options may be chosen on the product page
Jaime (verified owner) –
Technically sound product with very good image quality and plenty of features, very convenient form factor and well built, without being heavy.
Minor quality and design issues, including a deformed rubber ocular (probably pinched during transport, customer support is requesting a new part but I need to glue it back in place myself). The included soft case is too shallow and I have to force to close the Velcro, which results in a deformed rubber ocular, and no YouTube reviewers have ever mentioned that (one wonders…).
The included manual is poorly written and many features are not explained or omitted but some research suffices to find how the thing works.
