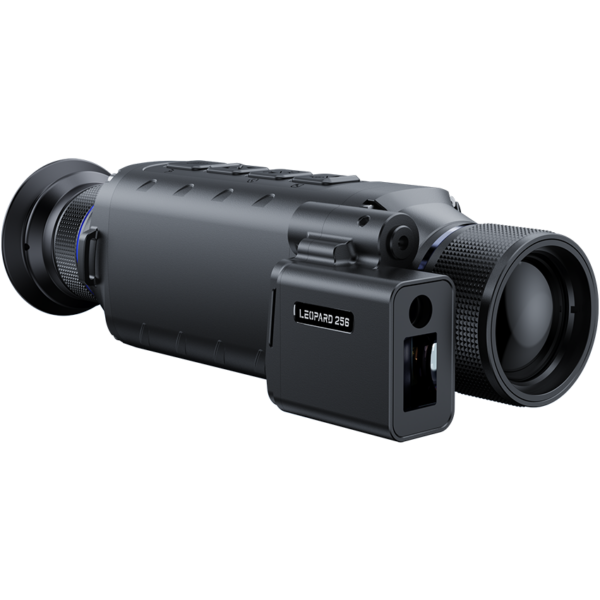

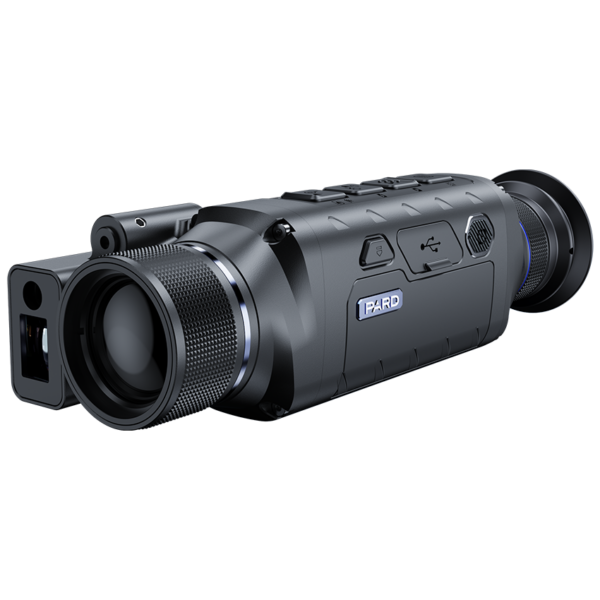

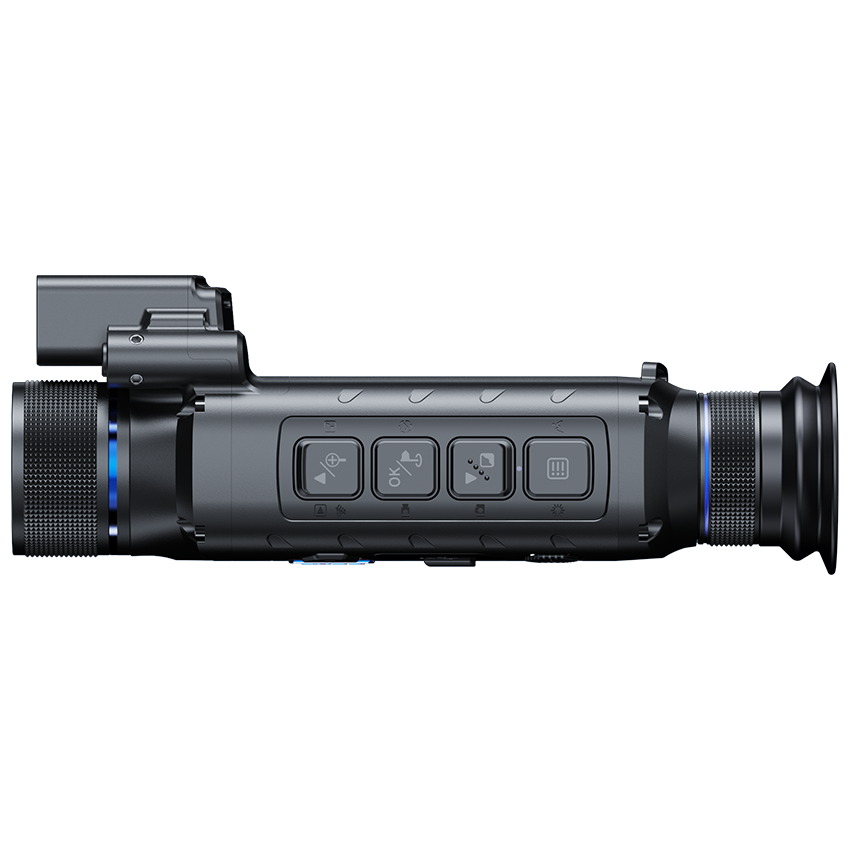

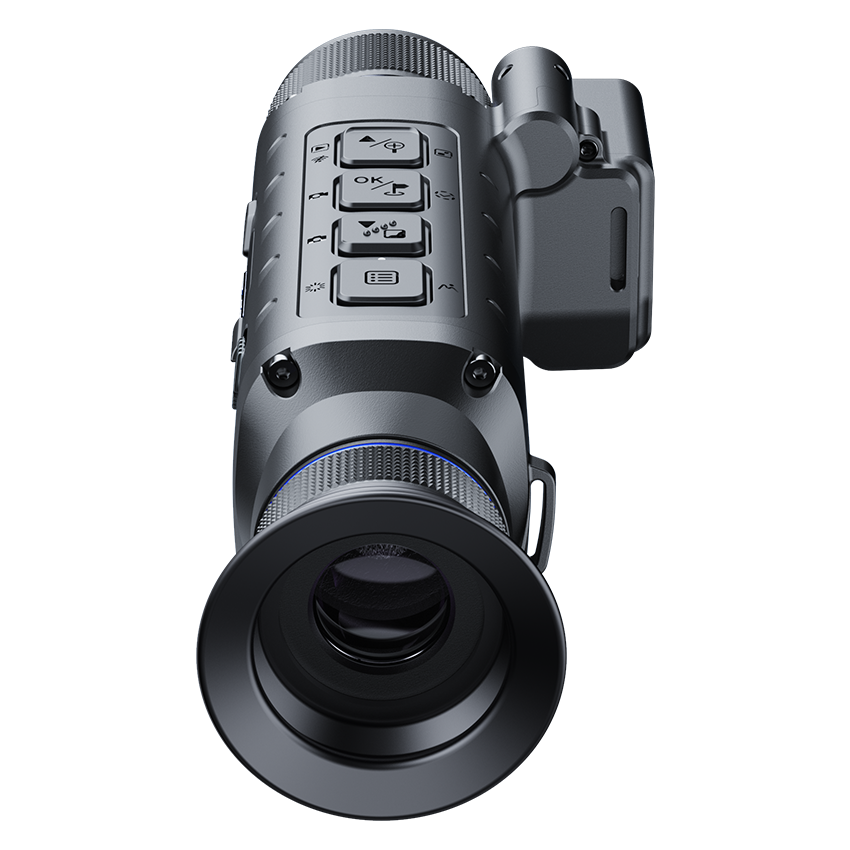

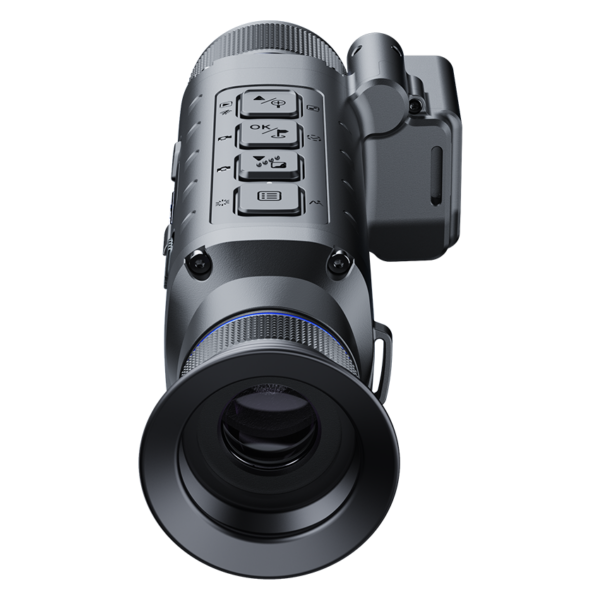

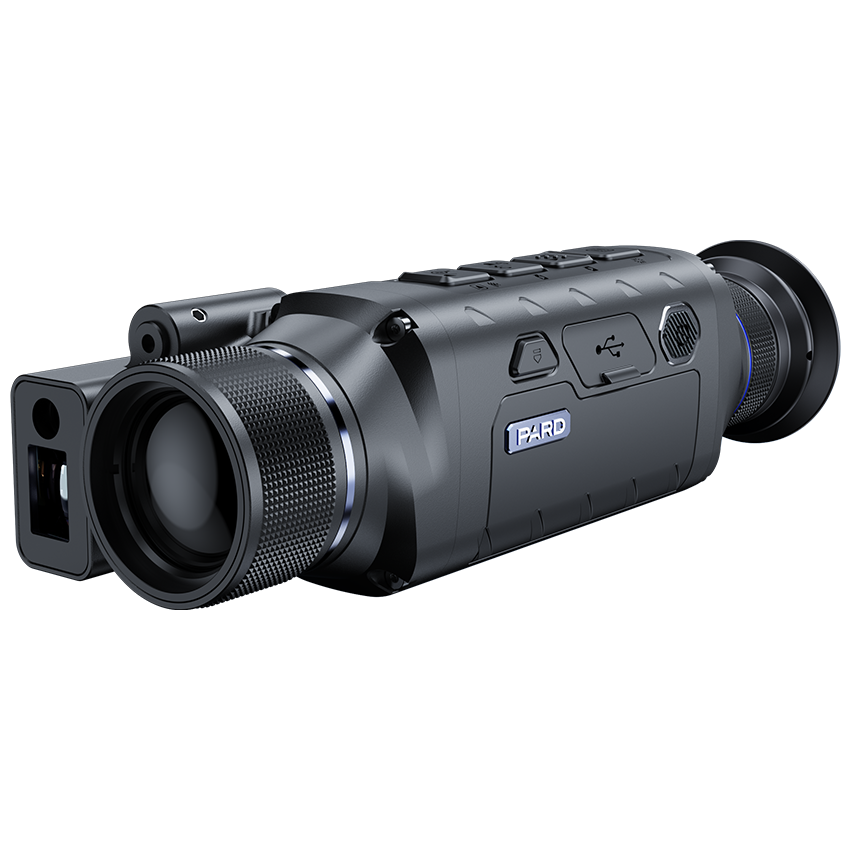

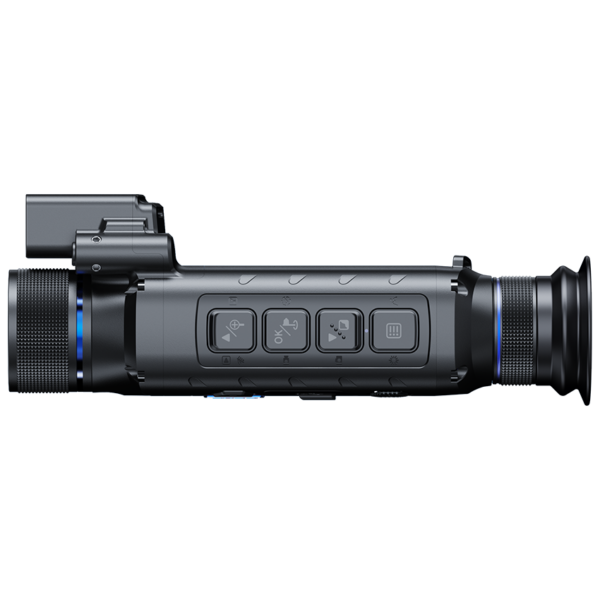

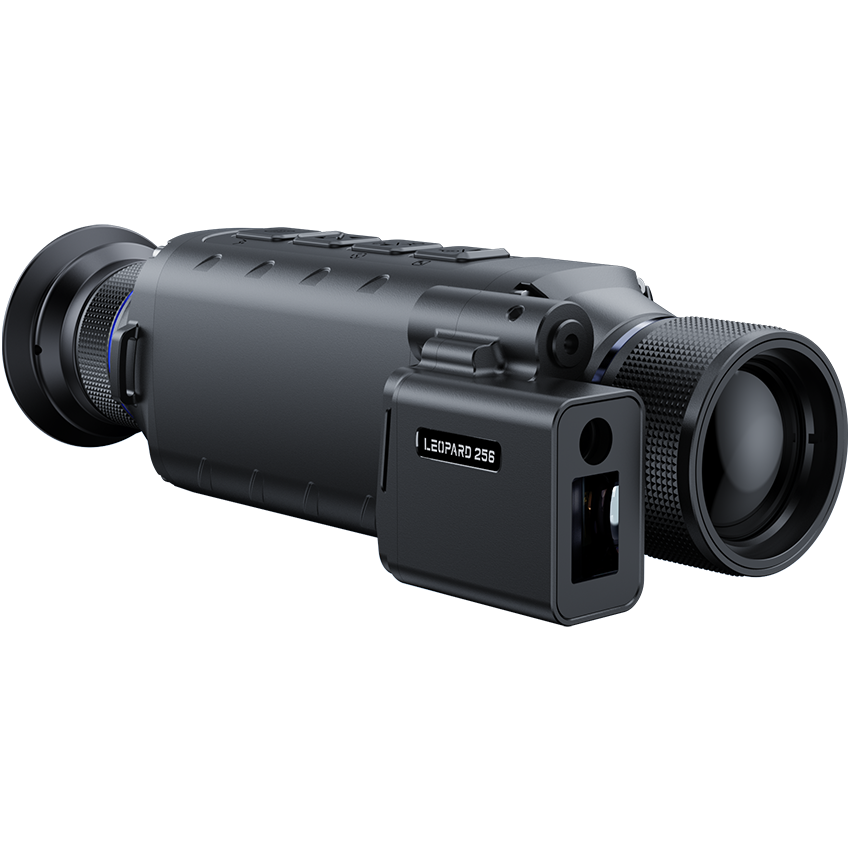

Pard Leopard 640 Thermal Monocular
Price range: 1353,78 € through 1433,47 € inc. VAT
ENHANCED SENSOR WITH HIGHER RESOLUTION – Featuring a high-resolution sensor with a resolution of 640*512, coupled with cutting-edge uncooled Vox technology ensuring clear visibility of abundant target details and characteristics.
UPGRADED DISPLAY WITH HIGHER RESOLUTION 1920*1080 – Equipped with an ultra-high 1920*1080 resolution screen for monocular, Leopard will deliver observation visuals that are richer, more detailed, and exceptionally clear.
NETD ≤ 20mK UNPARALLELED SENSITIVITY – Detect the subtle temperature difference below 0.020℃, delivering clearer, more detailed images and enabling easier identification of objects in various weather conditions.
INTEGRATED 1000m LASER RANGEFINDER – Integrated 1000m rangefinder module swiftly and accurately measures and display’s real time target distances, supporting a quick and error-free assessment of the situation.
SUPER TINY & COMPACT DESIGN – With its compact design and lightweight 360g. It greatly enhances observation comfort and convenience,
ensuring prolonged usage without straining hands.
Sensor
Type Uncooled VOx(vanadium oxide)
Resolution(pixel) 640*512
Pixel Size(µm) 12*12
NETD ≤20mK（0.02℃
Frame Rate(Hz) 50
Detection Distance(m) 1200/1800
Optics
Objective Lens(mm) 25/35
Optical Magnification(x) 1.6/2.2
Digital Zoom(x) 2/4/6/8
Field of View (Horizontal) 17.5°/12.5°
Field of View (Vertical) 14.0°/10.0°
Field of View (Diagonal) 22.3°/16.0°
Eye Relief(mm) 20
Diopter Adjustment(D) -5~5
Display
Type AMOLED
Resolution(pixel) 1920*1080
Scene Mode City/Rain/Forest
Image Mode WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY
Photo / Video
Photo Resolution(pixel) 1440*1080
Photo Format .JPG
Video Resolution(pixel) 1440*1080
Video Format .mp4
Storage(GB) Micro SD card (Max. 128GB)
Image Engine Pard IREA
Main function
LRF Detection Range(m/yd) 1000/1200
PIP Yes
Gyroscope Yes
Loop Recording Yes
Hot Track Yes
E-compass Yes
Shutter Mechanical shutter
Microphone Yes
Firmware Upgrade Yes
Connections
USB Type-C Yes
HDMI Output Yes
WiFi Yes
Supported Apps PardVision2
Power Supply
Battery Type Lithium Ion 18650*1
Output Voltage(V) 3.7
Operating Time(h) ≤6
External Power Supply Type-C
Environmental Characteristic
Degree of Protection IP67
Operating Temp(°C/°F) -30 ~ +55 / -22 ~ +131
Material
Housing Aluminum Alloy+Composite
Eyepiece All-glass multi-coated lens
Measurement
Product Dimension(L x W x H, mm) 169*58*48
N.W/pcs(with LRF&battery, g) 360
| Model | Including LRF, without LRF |
|---|
