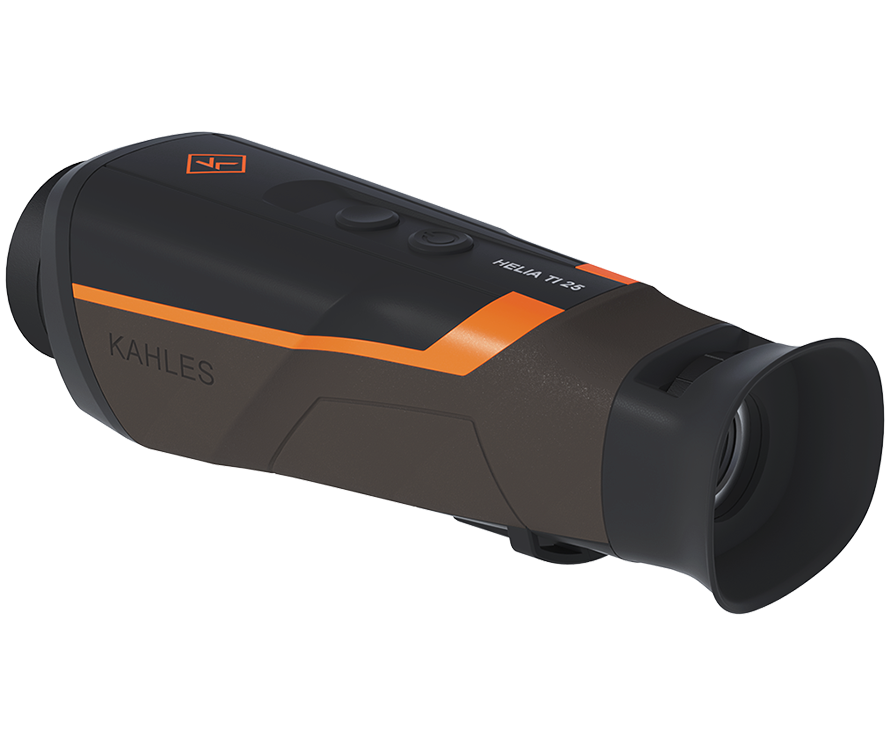

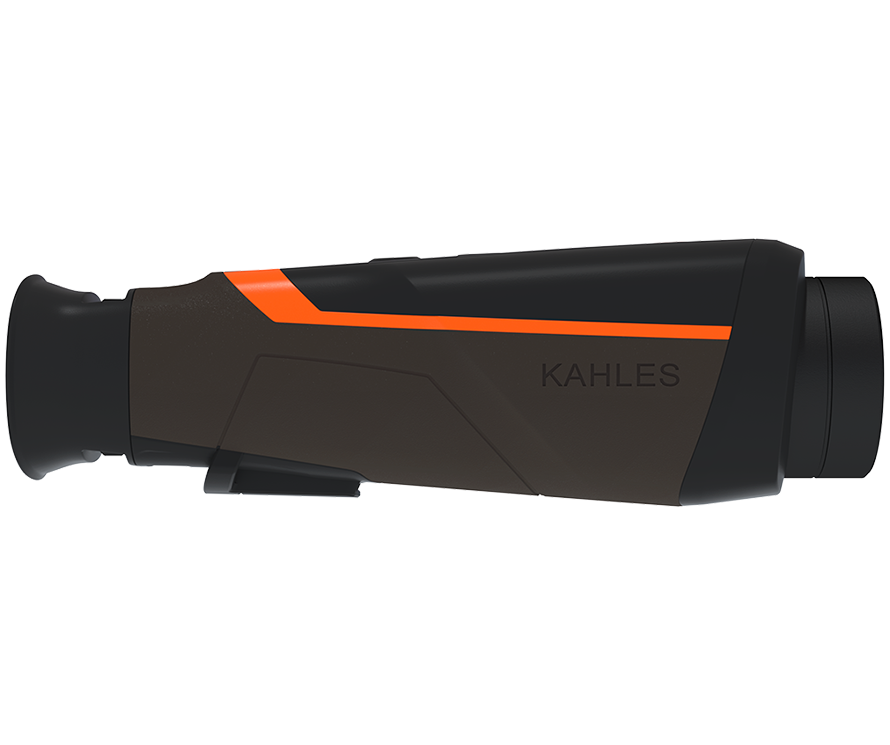

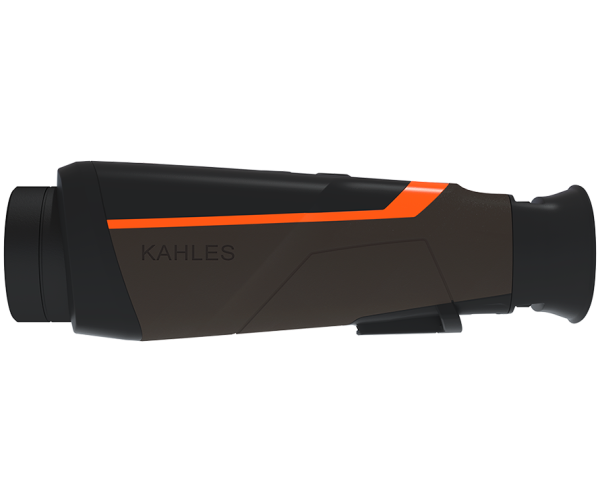

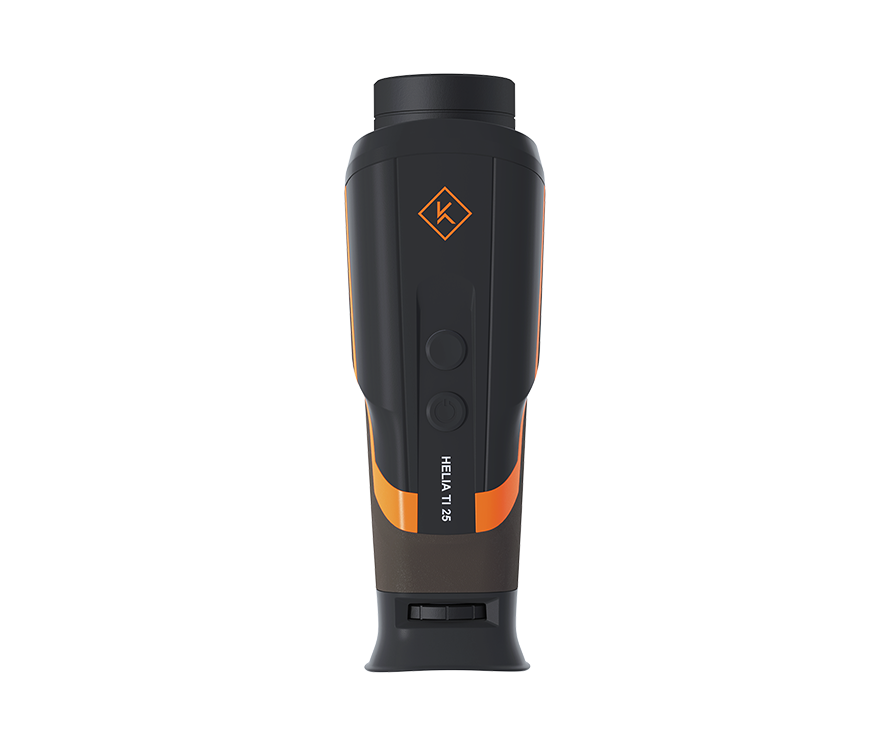

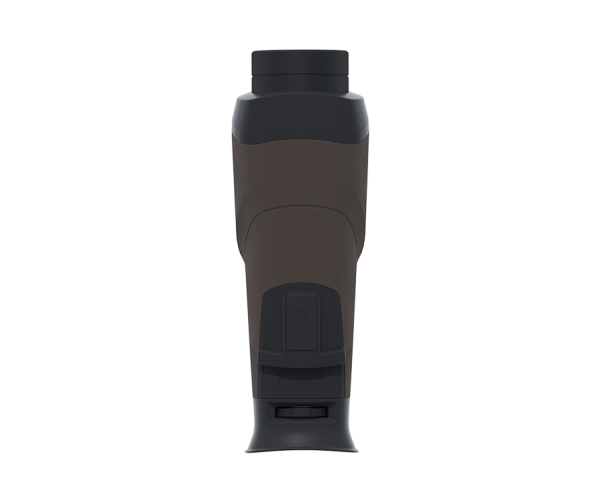

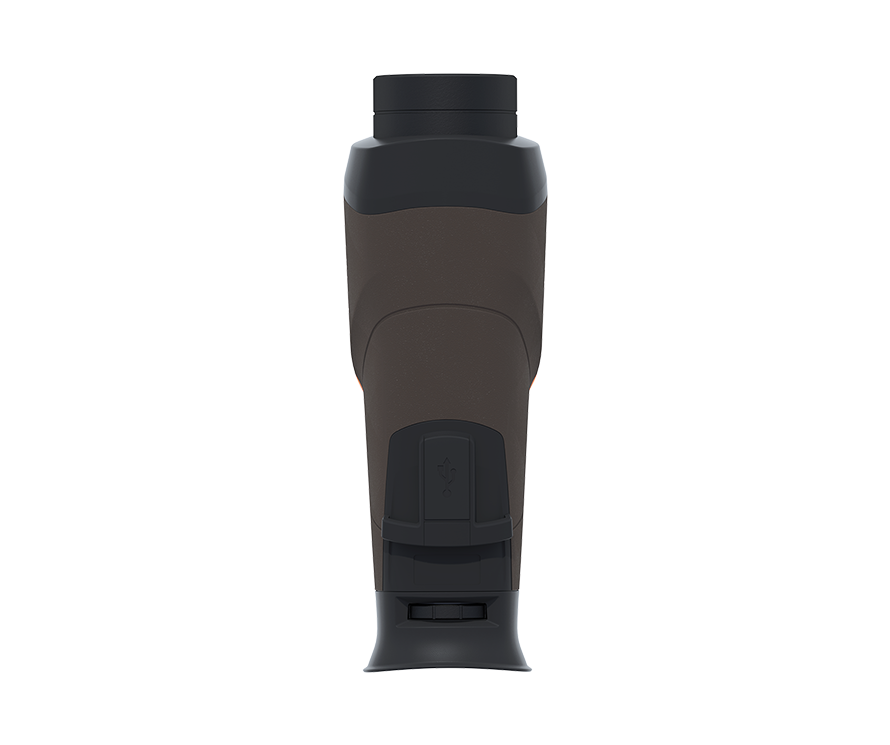

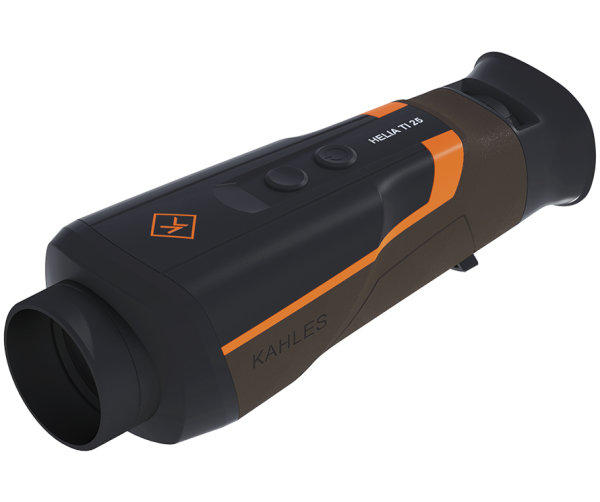

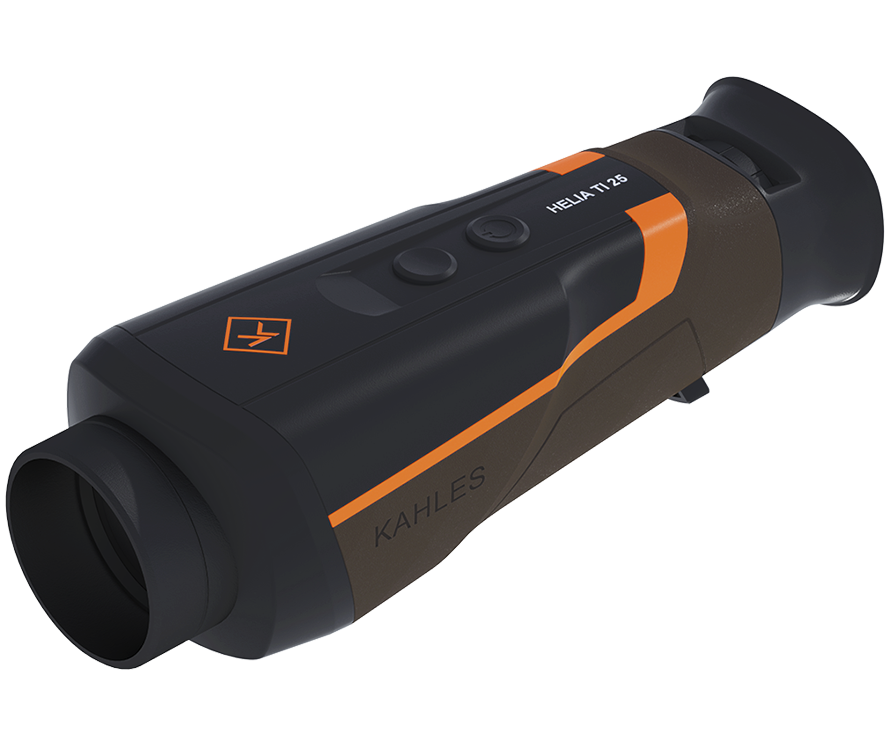

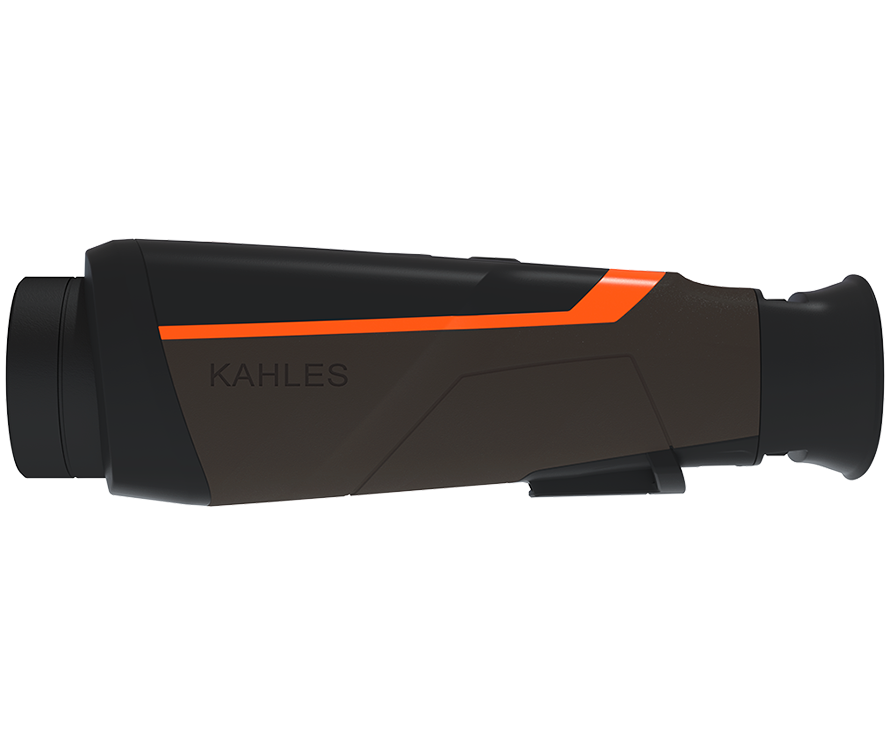

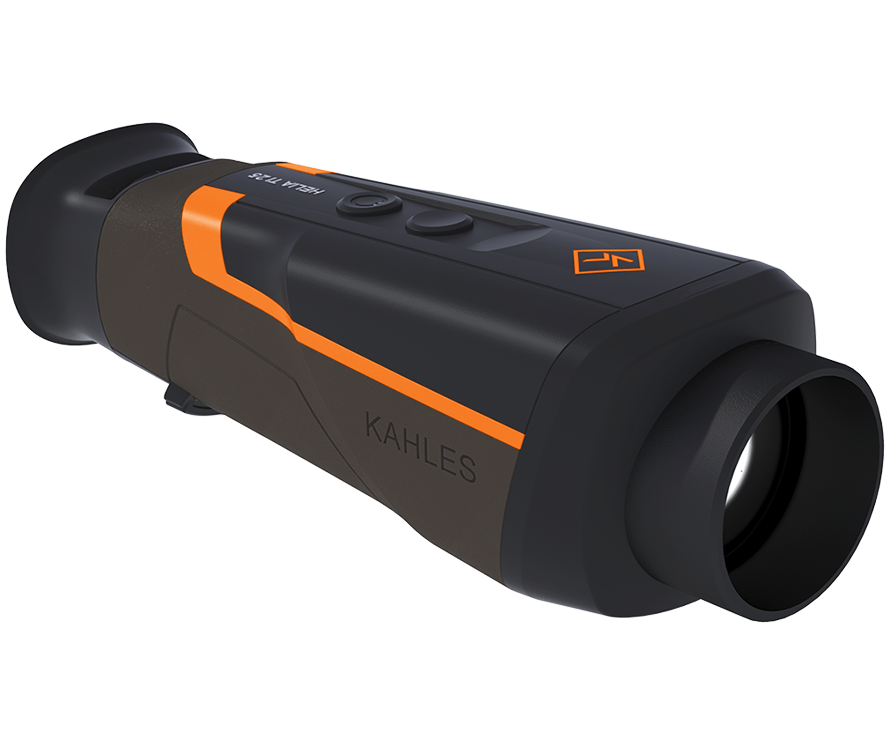

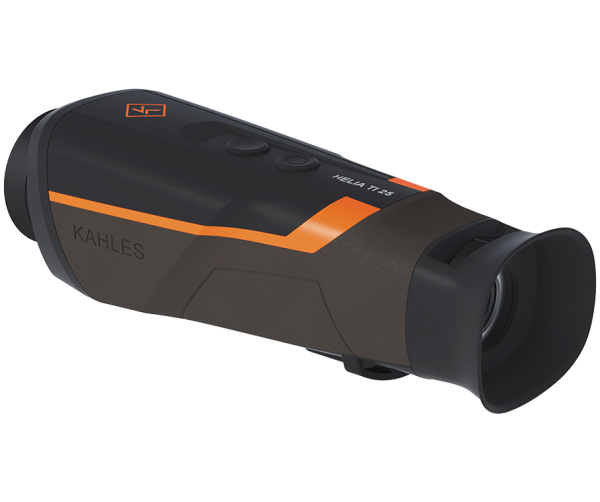

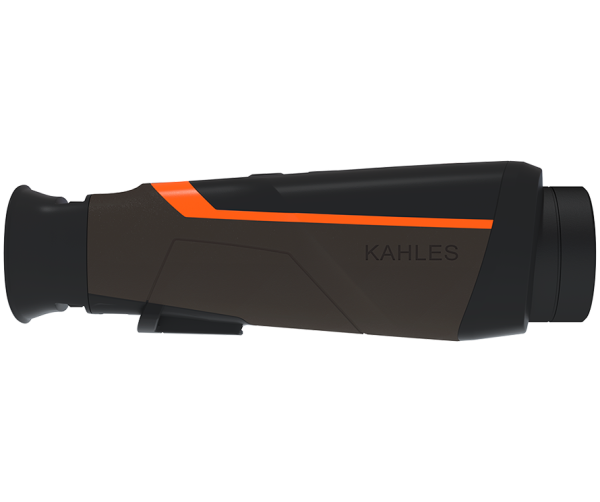

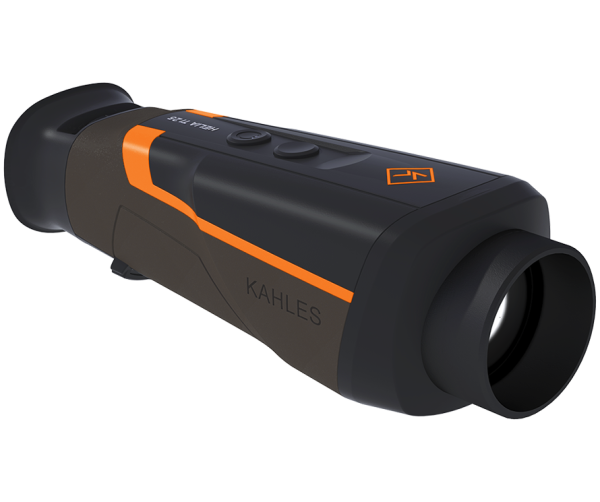

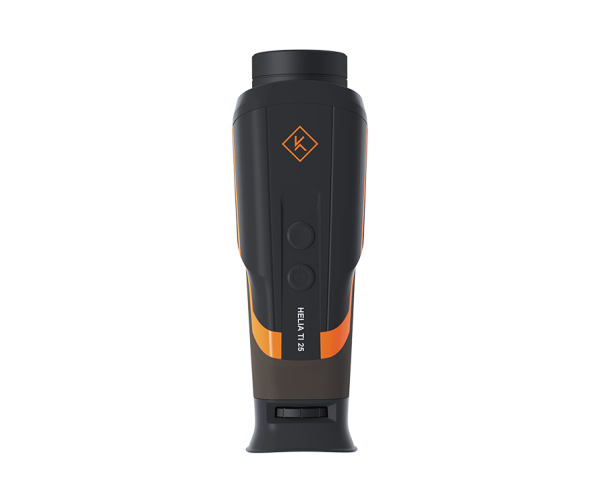

In every detail, KAHLES HELIA TI thermal imaging devices are radically optimised for hunting. They combine intuitive, easy handling with excellent imaging performance. Not a button too many, none in the wrong place. Uncompromising simple and fast detection day and night.
- Radically simple and intuitive – with only 2 control buttons
- Excellent imaging performance with high detail resolution
- Ready to work in just 2 seconds
- Intelligent automatic display switch-on/-off with tilt and motion sensor
- Drop-proof, waterproof and ready for use in extreme temperatures
- Extra-long battery life – even at -20° Celsius
- Ergonomic, roll-proof design and perfectly placed controls
VIEWING MODES:
TECHNICAL INFORMATION:
| HELIA | TI 25 |
| Objective lens | 25 mm, F1.0 |
| Sensor resolution (pixels) | 384×288; 17 μm |
| Sensor type | Vanadium oxide uncooled focal plane arrays |
| Thermal sensitivity – NETD (mK) | <35 |
| Display resolution (pixels) | 1.024×768 |
| Display frame rate (Hz) | 50 |
| Display type | OLED |
| Field of view (°) | 14.88×11.19 |
| Field of view (m/100m) | 26 |
| Field of view (ft/100yds) | 78 |
| Field of view apparent (°) | 25×18,7 |
| Optical magnification | 1,7 |
| Digital zoom | 1x, 2x, 4x |
| Detection (m)* | 1250 |
| Recognition (m)** | 417 |
| Identification (m)*** | 208 |
| Battery type | Rechargeable lithium-ion battery |
| Battery life | up to 8h |
| Operating temperature (°C) | -20 / +50 |
| Length x Width x Height (mm) | 198 × 68 × 63 |
| Weight (g) | 430 |
| Waterproof | ✓ |
| Focus | Manual |
| Boot-up time (s) | 2 |
| Automatic display switch on-/off | ✓ |
| Colour modes | White Hot, Black Hot, Red Only |
| Warranty | 3 years |
| Accessories (included) | Objective lens cover Carrying strap with quick release fastener Neoprene protective cover USB-C charging cable |
* Detection distance 1,7 x 0,5 / 2px (m)
** Recognition distance 1,7 x 0,5 / 6px (m)
*** Identification distance 1,7 x 0,5 / 12px (m)
