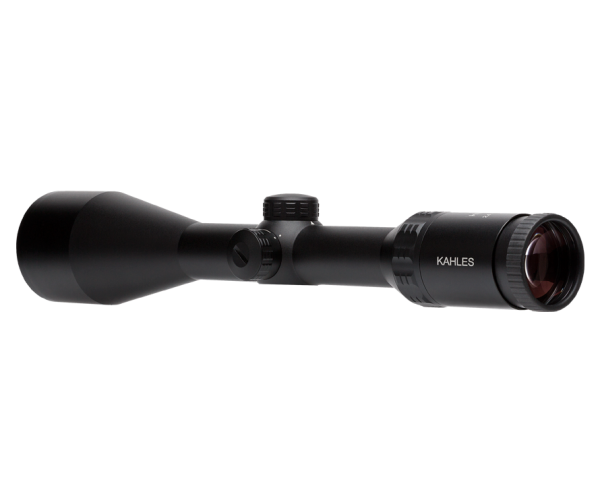

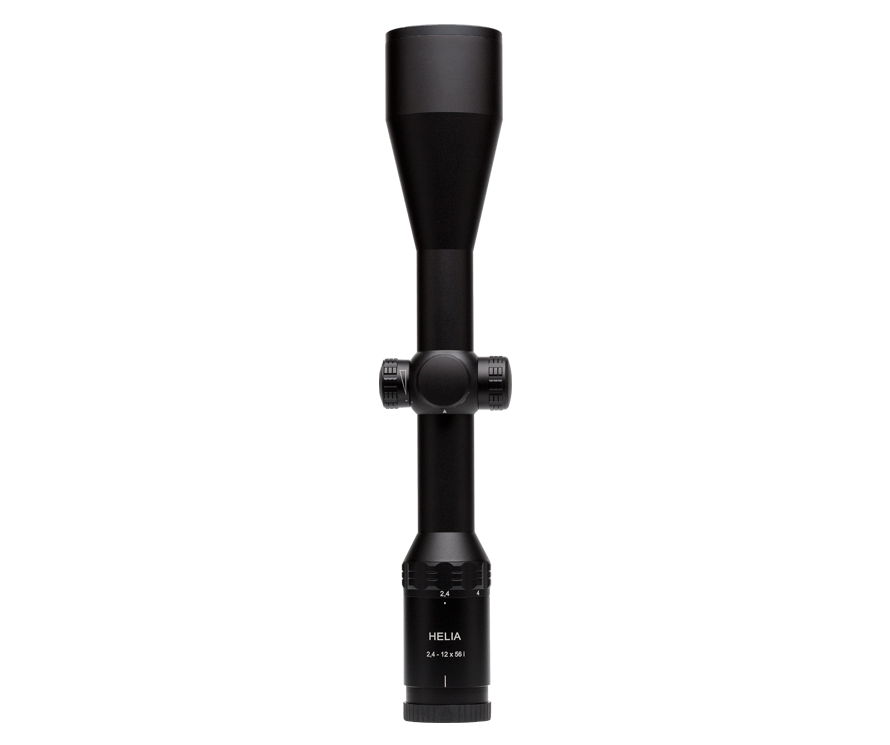

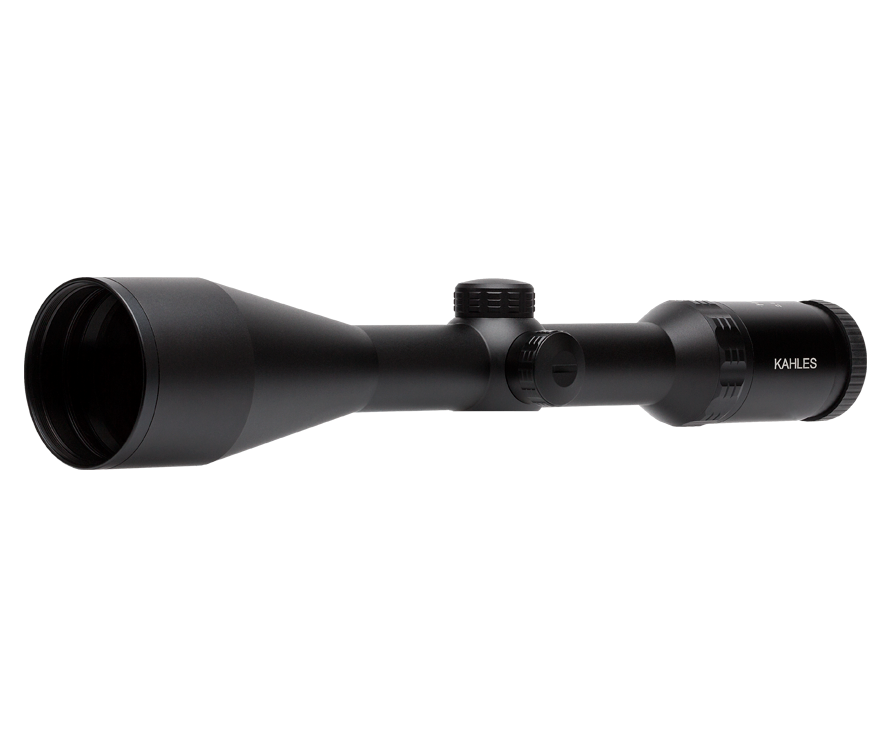

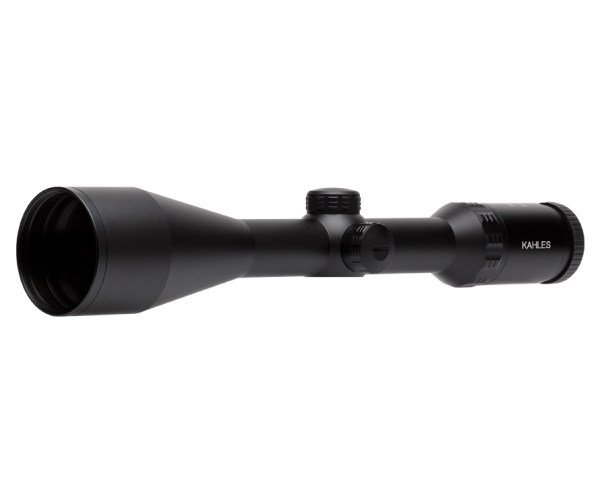

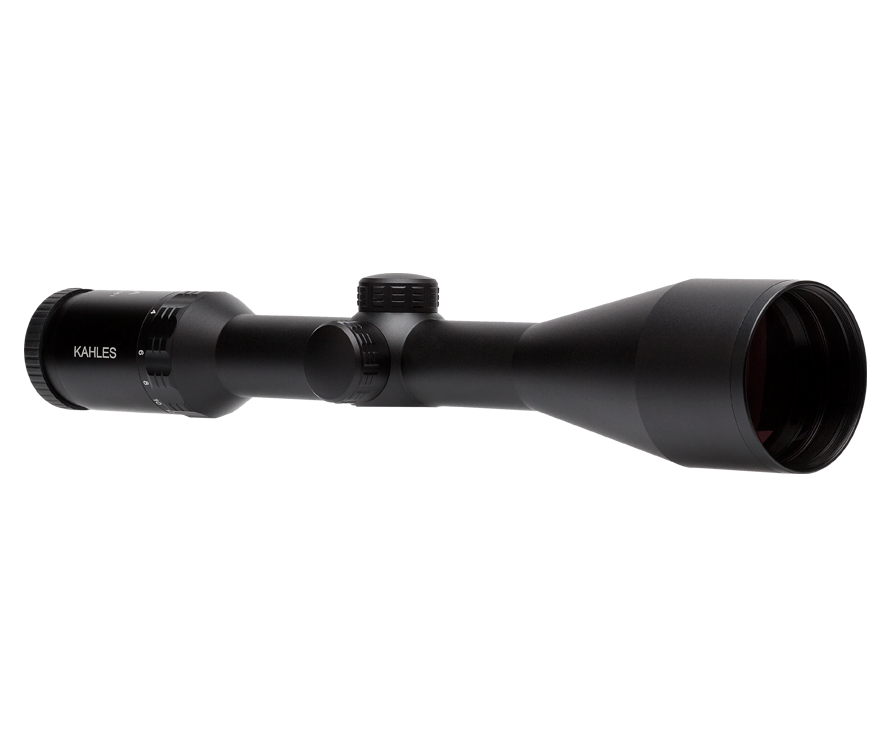

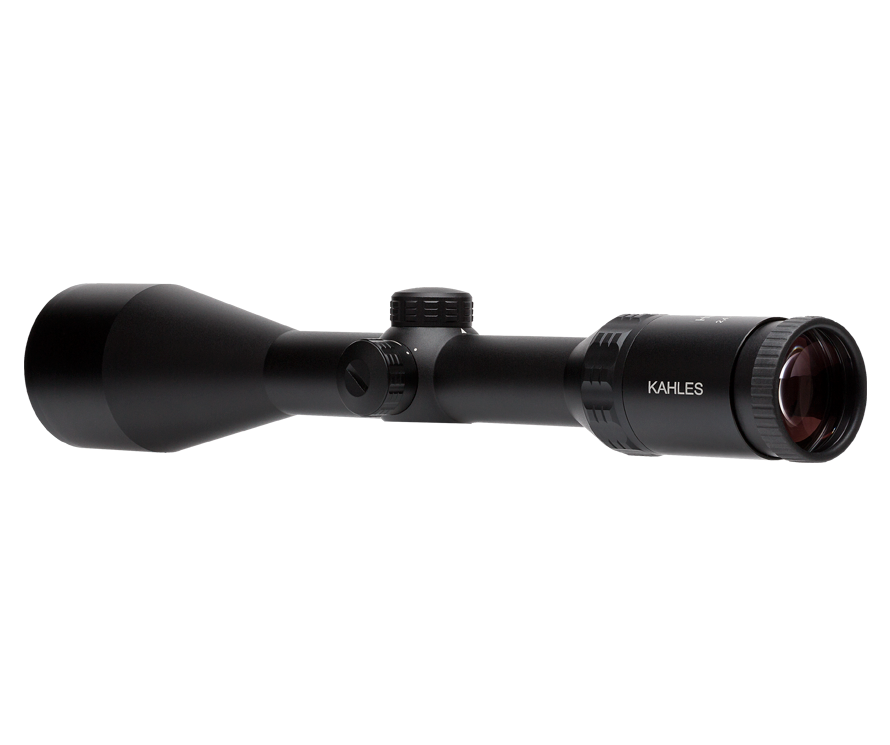

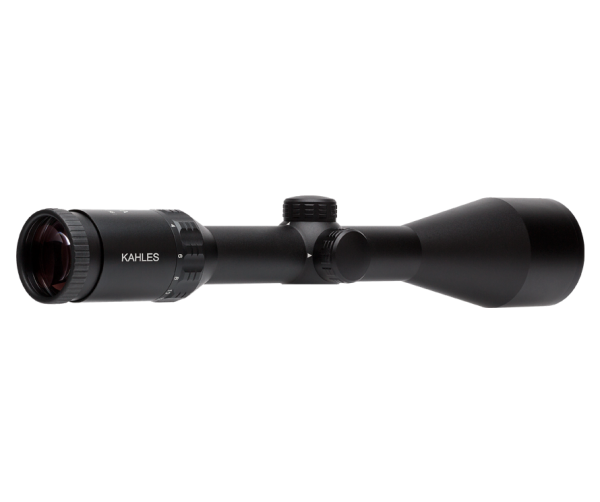

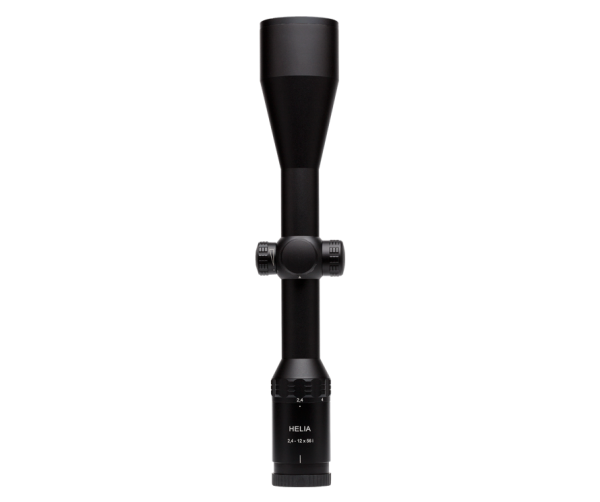

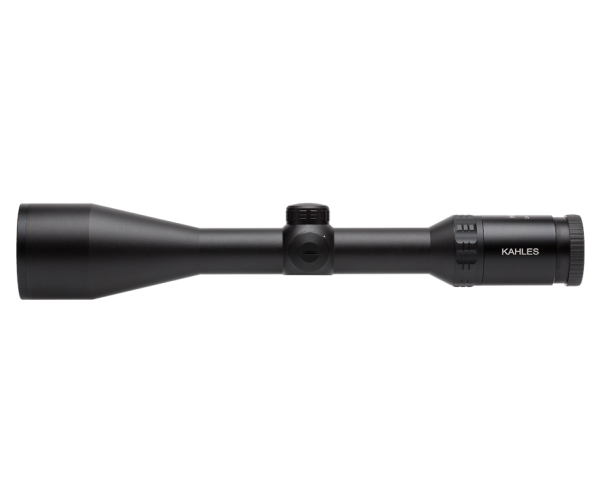

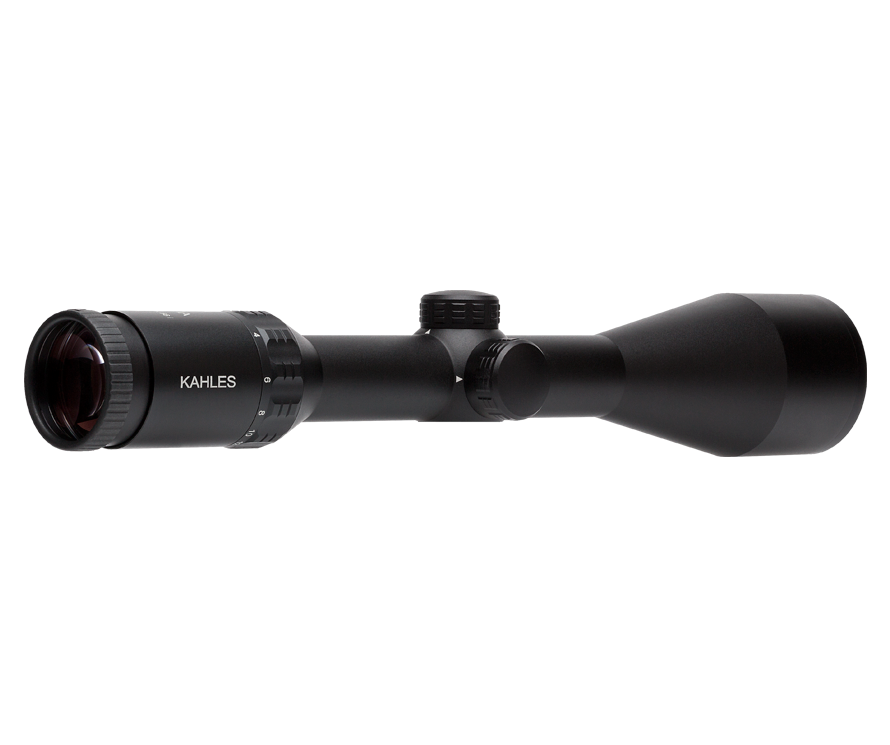

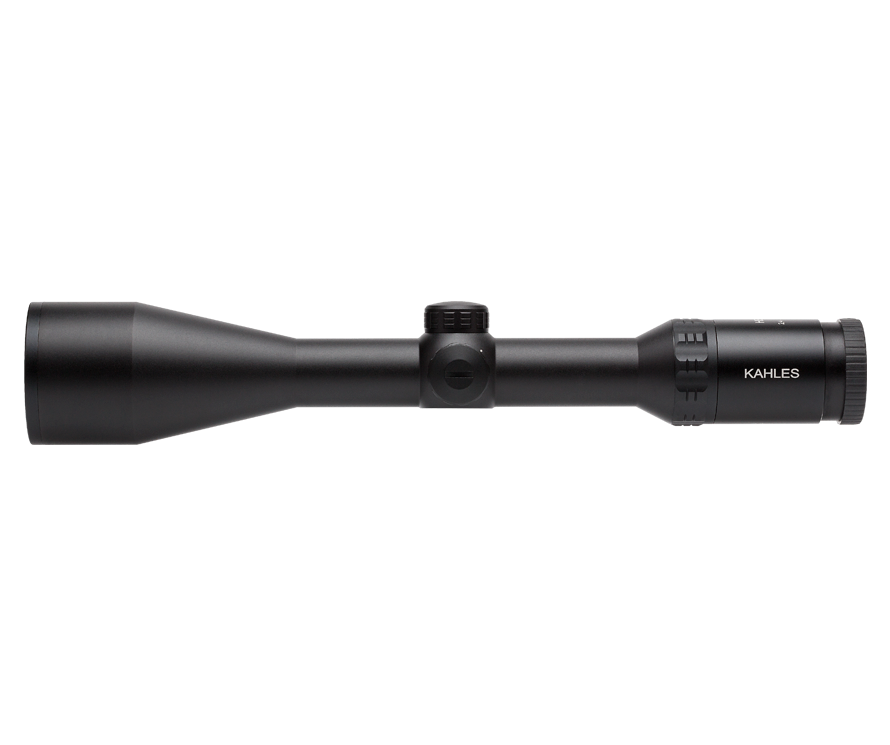

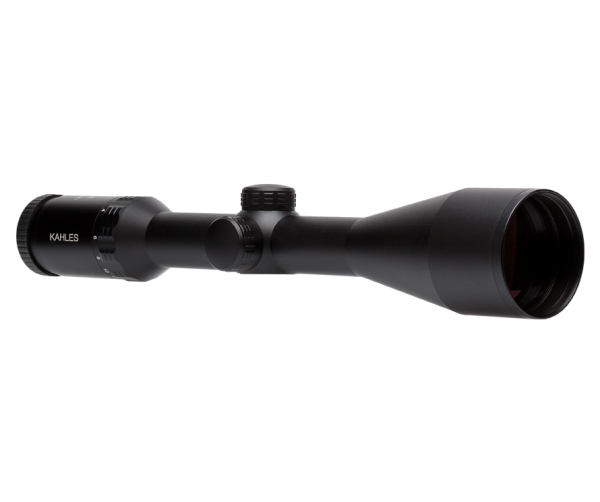

The KAHLES HELIA series impresses with uncompromising focus on the real essentials: functionality, reliability, handling and aesthetics. The perfect tool for hunting.
- Ideal for hide/stand hunting with exceptionally high light transmission, whether dawn, dusk or night
- Perfect image with best contrast and wide, brilliant field of view
- Powerful optics system with exceptional edge sharpness
- Day/night illuminated reticle with intelligent automatic switch-off
TECHNICAL INFORMATION:
| Magnification: | 2.4 – 12 |
| Objective lens diameter: | 56 mm |
| Eye relief: | 95 mm |
| Field of view: | 16.5 – 3.3 m/100 m |
| Diopter compensation: | +2 / -3.5 dpt |
| Twilight factor (DIN 58388): | 7.4 – 25.9 |
| Impact correction per click: | 0.36 inch (100 yds) 10 mm (100 m) .1 MIL |
| Adjustment range (E/W): | 1.9 / 1.9 m |
| Tube diameter: | 30 mm |

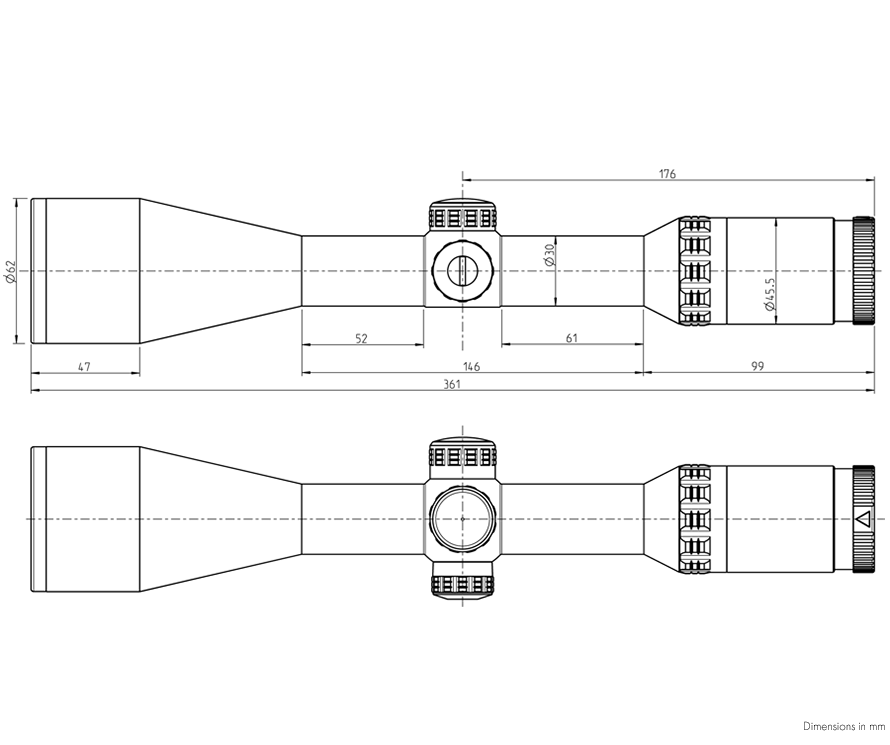

| Length: | 359 mm |
| Weight: | 680 g |
| Weight (SR-Rail): | 704 g |
| Focal plane: | 2 |
| Illuminated: | Yes |
| Warranty: | 10 Years (2 electronic) |
4-Dot reticle
Ring Mount version
