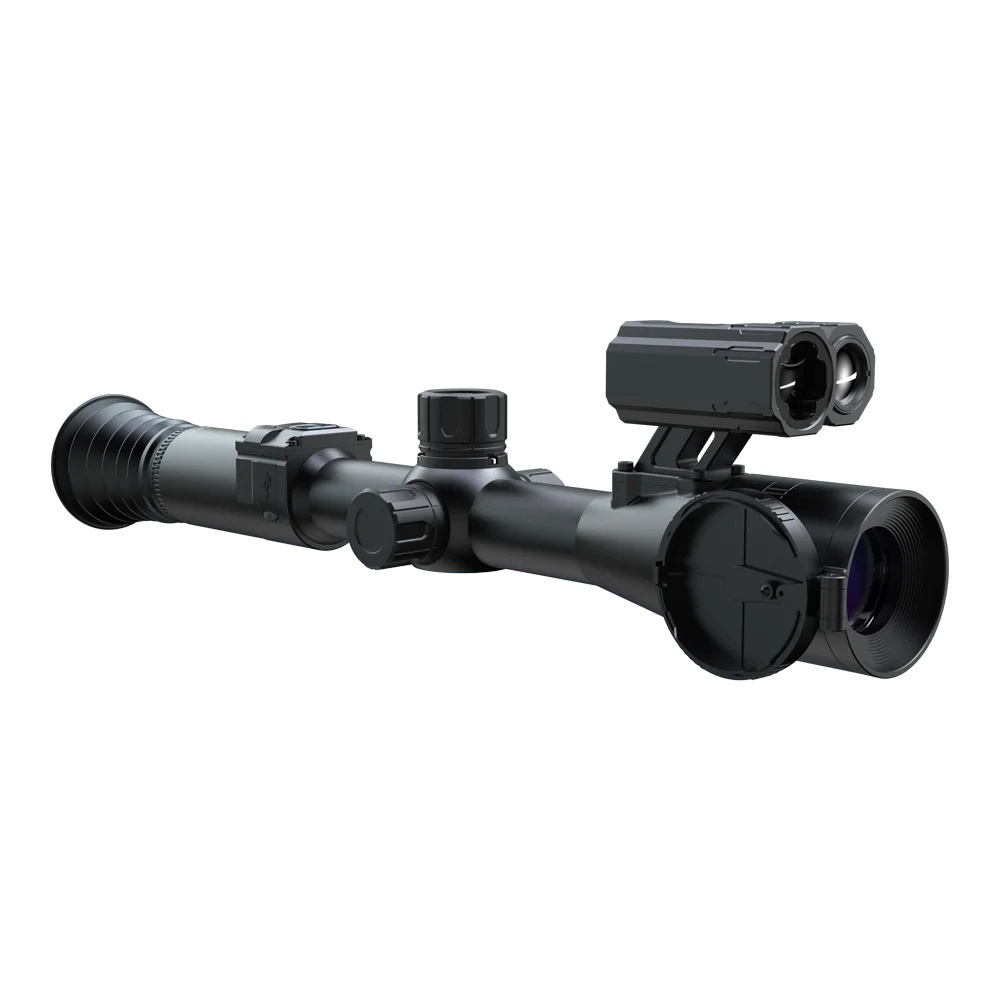

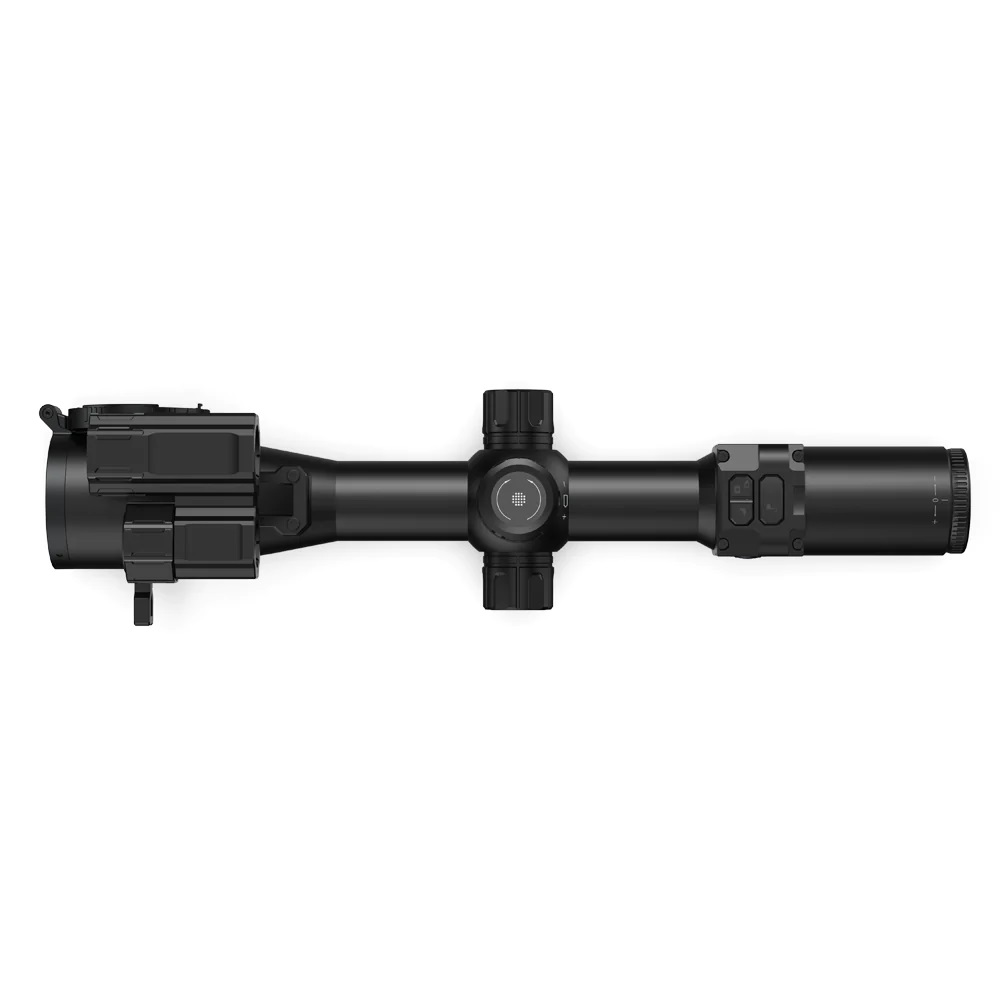

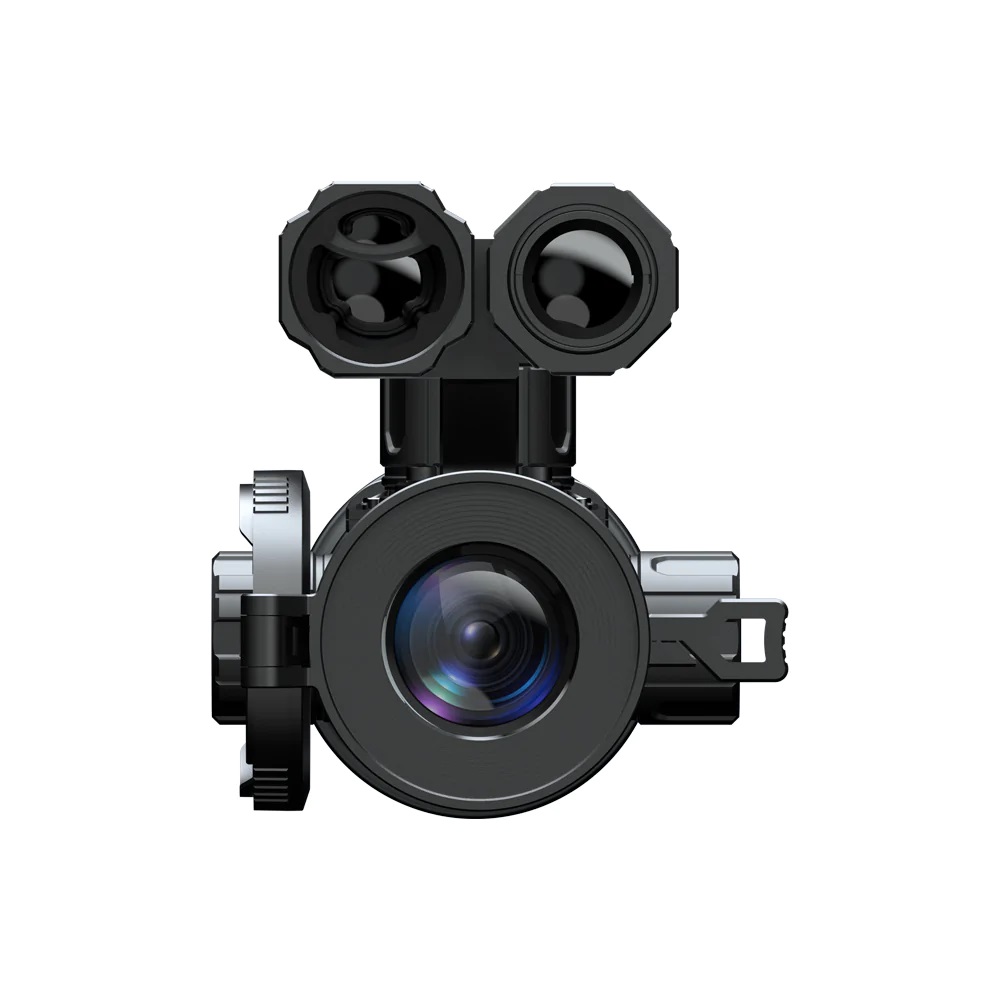

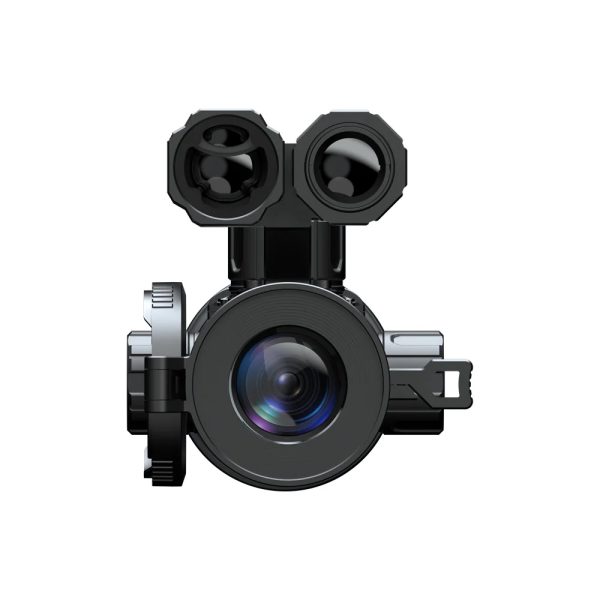

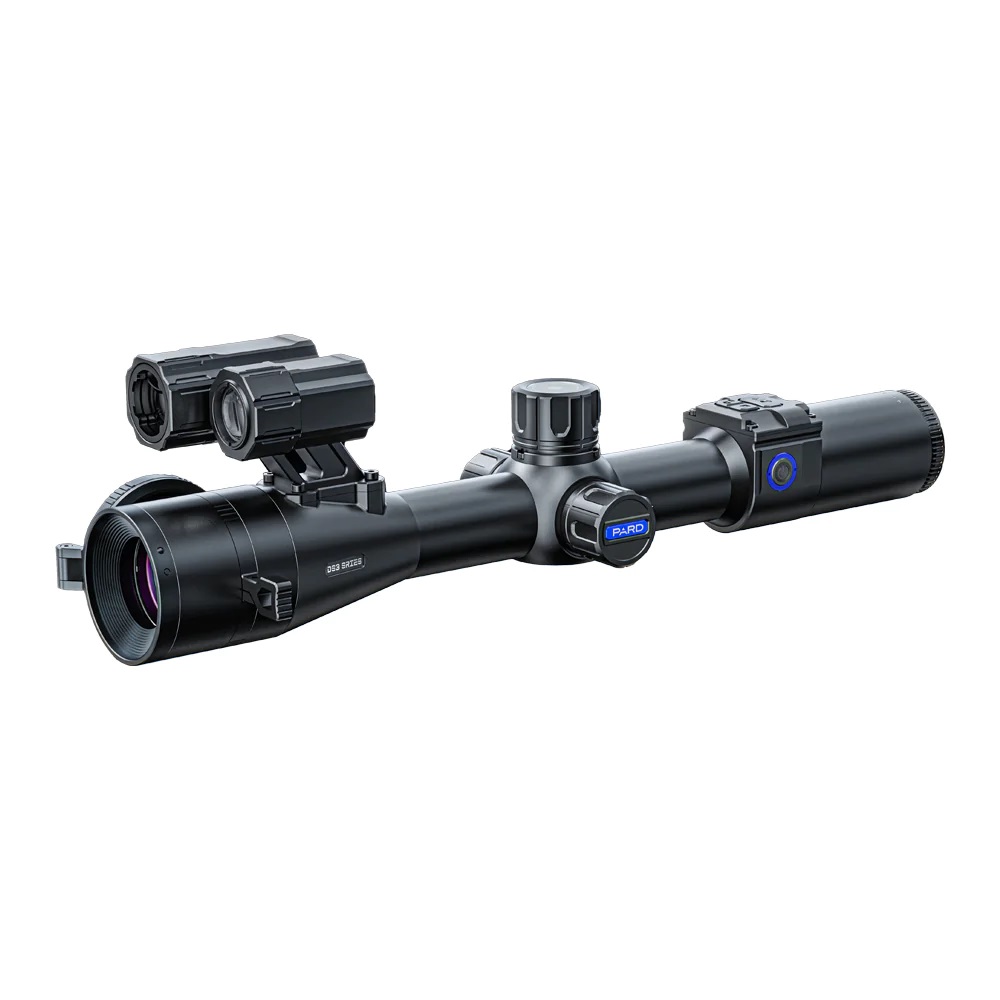

Pard DS35-70R night vision scope feels like a traditional riflescope but it´s much more! Day or night, it doesn´t matter.
The DS series scopes feature an 800×800 LTPS circular digital display that delivers high-resolution images and rich contrast. The extra wide field of view provides exceptional environmental awareness. The CMOS .001 low lux image sensor provides detailed, high resolution images in the lowest light situations. The DS35 offers a 2560×1440 (2K) sensor. The convenient location of the control knob allows the user to quicly and easily change between menu options and operates the ballistic calculator when in hunting mode. You can adjust and operate the DS35 with this one single knob.
Pard DS35-70R night vision scope is easy to use as traditional riflescope. Check out specifications of DS35-70R below.
DS35-70R Specifications |
|
| Model | DS35-70(RF)/940 |
| Classification | Night Vision(scope) |
| Sensor | |
| Type | CMOS |
| Resolution(px) | 2560*1440 |
| Pixel size(um) | 2.9um |
| Sensitivity(lux) | 0.001lux |
| Frame rate(fps) | 30fps |
| Image Engine | PARD VLEA |
| Optics | |
| Objective lens | 70mm F2.4 |
| Optical Magnification(x) | 5.6x |
| Digital zoom(x) | 2x |
| Continuous digital zoom | 5.6-11.2x |
| PIP digital zoom | 2x |
| Field of view (HxV) | H: 3.4º |
| V: 3.4º | |
| D: 4.8º | |
| Focus range | 5m-∞ |
| Eye relief(mm) | 100mm |
| Exit pupil(mm) | 10mm |
| Diopter adjustment(°) | TBD |
| IR Illuminator | |
| IR Type | VCSEL |
| IR power | 5W |
| IR illuminating level | 3 Levels |
| IR distance(m) | 350m |
| IR Wavelength(nm) | 940nm |
| Display | |
| Type | IPS LCD |
| Resolution(px) | 800*800 |
| Reticle Style | 6 |
| Reticle Color | white/yellow/green |
| Color mode | Color/Mono BW/Mono Green/Mono Yellow |
| Photo / Video | |
| Photo resolution(px) | 2560*1440 |
| Photo format | JPG |
| Video resolution(px) | 1920*1080 |
| Video format | MP4 |
| Storage(GB) | TF card(128GB) |
| Main function | |
| PIP | Yes |
| LRF detection range(m) | 1000 |
| Ballastic caculator | Yes |
| Range unit selection | Meter/yard |
| Gyroscope | Yes |
| Self-activated recording | Yes |
| Auto recording | Yes |
| Loop recording | Yes |
| Time stamp | Yes |
| Record audio | Yes |
| Beep sound | Yes |
| Exposure compensation | Yes |
| Interfaces | |
| USB Type-C | TYPE C |
| HDMI Output | Yes |
| Connections | |
| WiFi | Yes |
| Supported Apps | ppshow, roadcam |
| External power supply(V) | |
| Battery type | Lithium Ion18650 |
| Output voltage(V) | 3,7 |
| Operating time(h,max) | 8 |
| External power supply(V) | USB Type-C |
| Environmental characteristic | |
| Degree of protection | IP67 |
| Operating temp(°C) | -20 – 50 |
| Recoil Power(J) | 1000G |
| Material | |
| Housing | Aluminium Alloy |
| Objective lens | Glass |
| Measurement | |
| Product dimension(L x W x H, mm) | L350mm*W88mm*H95mm |
| N.W/pcs(with/without battery, g) | 680g |
| Inner box dimension(L x W x H, mm) | 396mm * 125mm * 110mm |
